NEW Breakout Board for Cap04 and Cap04-V for Mach3

2.LPT Port Breakout Opto isolated I/O Board

NEW Stand Alone Torch Lifter Interface Board

CAP-HB03 Interface Board for Plasma Cutter Stand Alone Torch Lifter

New Model of Capacitive Sensor Cap04 now available.

Four outputs: Down, In Position, Up, Touch the plate. Separate circuitry for TOUCH output, it is not ohmic and can be used on rusty or painted material. Cap04-V model has additional feature, height can be controlled by external voltage source for remote height controlling.

Coming Soon

Voltage Controlled THC, operates with Capacitive Sensor .

There is no need to touch cutting material, switches, springs....

Or annoying spring effect of metal.

Solution is:

THC-AGEL-01

Initial Height (IHS) for piercing, controlled by capacitive sensor

Not on/off control, VARIABLE SPEED CONTROL for Z axis with PWM.

High torque DC motor with BRAKE function

TORCH PROTECTOR

Magnetic torch mount collision break-away with E-STOP sensor

Excellent Solution:

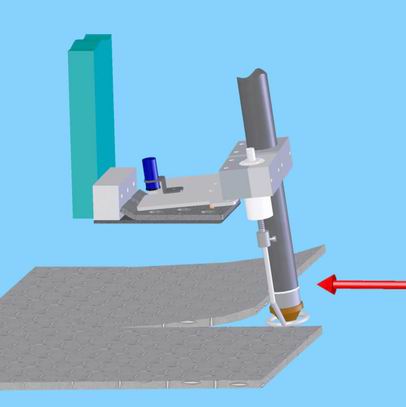

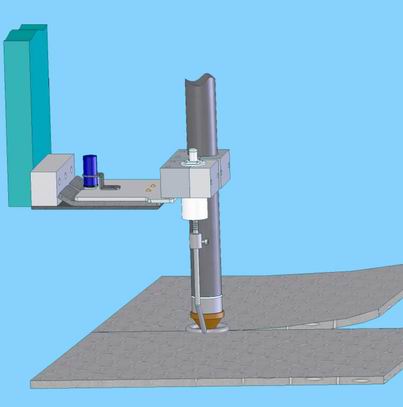

Magnetic Breakaway for Torch Head with Capacitive Sensor

Magnetic breakaway for consistent positioning during cutting and retention after collision or consumable change.

Powerful magnets and keyed mounting plate for fast and repeatable repositioning of the torch.

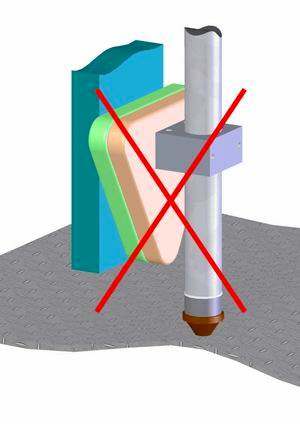

This type of design was not worked properly
